BOSCH 90CM SERIES 2 WALL MOUNTED CANOPY - 570m3 NETT - DWP66BC50A (Made in Germany)
Technical Specifications
Design & Innovation
- Pyramid design
- Appliance colour: Stainless steel
Power and Mode of Operation
- 3 power settings via Push button
- Extraction rate exhaust air according to EN 61591: max. 570 m³/h
- Extraction rate in recirculation mode:
Max. normal use: 400 m³/h - Ducted and recirculated-air operation
- For recirculated extraction optional recirculation kit (accessory) needed
- Push button controls for power and light
- Twin channel high performance fan motor
- Noise min./max. Normal Level: 49/69 dB
Noise max. Intensive setting: NO_FEATURE dB - Noise level in recirculation mode:
Max. normal use: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure) - Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)
- Average Energy Consumption: 39.9 kWh/year
- Power rating: 220 W
Comfort & Convenience
- Dishwasher safe metal grease filters
- 2 x 1.5W LED
- with one-way flap: prevents outside air from entering your kitchen
Technical Information
- Appliance width: 600 mm
- Dimensions exhaust air (HxWxD): 799-975 x 600 x 500 mm
- Dimensions recirculating (HxWxD): 799-975 x 600 x 500 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Electrical cable length 1.3 m
General
| Width | 60 cm |
|---|---|
| Depth of the product | 500 mm |
| Construction type | Built-in |
| Operating Mode | Convertible |
| Max. air recirculation (m³/h) | 406 m³/h |
| Sound pressure max. normal | 56 dB (A) |
| Type of control setting and signalling devices | push-button |
| Energy efficiency class | A |
| Total annual energy consumption | 42.8 kWh/annum |
Construction type
| Diameter of air outlet (mm) | 150 / 120 mm |
|---|---|
| Colour | Stainless steel |
| Color chimney | Stainless steel |
| Grease filter material | Washable aluminium |
| Grease filter type | Kassette |
| Installation typology | Wall-mounted |
| Material of the body | Stainless steel |
| Material chimney | Stainless steel |
| Motor location | Integrated motor in hood body |
| Number of motors | 1 |
| Operating Mode | Convertible |
| Typology | Chimney |
Connection
| Connection rating (W) | 220 W |
|---|---|
| Length electrical supply cord (cm) | 130 cm |
| Frequency (Hz) | 50; 60 Hz |
| Total power of the motors (W) | 215 W |
| Voltage (V) | 220-240 V |

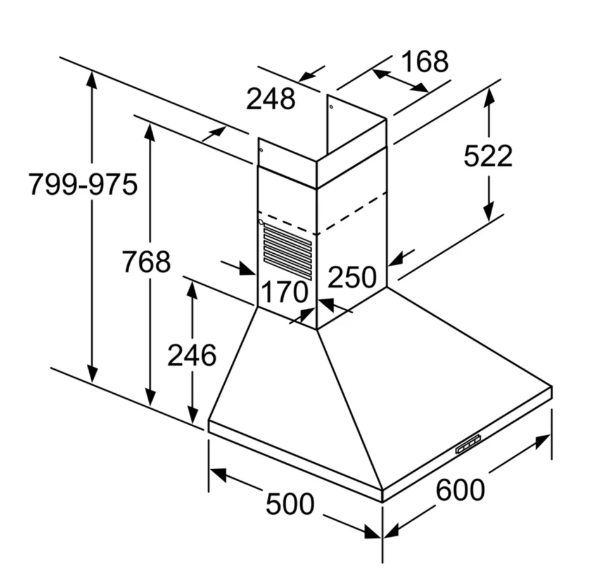

Technical Drawing
VISIT BOSCH WEBSITE FOR FURTHER INFORMATION ON THIS PRODUCT
