BONUS FRANKE TAP WITH SELECTED SINKS
OVERVIEW
| Type: Wall mounted rangehood with energy-efficient LED lighting and light-touch switches for easy use. |
| Model: DA 399-7 Classic |
CONSTRUCTION TYPE
| Wall-mounted rangehood |
OPERATING MODES
| Type of air guide: Can be retrofitted |
| Recirculation conversion kit (order separately): DUW 20 |
| Active charcoal filter (order separately): DKF 12-P |
DESIGN
| Colour: Stainless steel |
| Variable height available as customisation on request |
USER CONVENIENCE
| Electronic controls |
| Controls: Light-touch switches with LEDs |
| Power levels (number without Booster level): 3 |
| Booster settings: 1 |
| Programmable Booster level switch-off |
| Easy-to-clean canopy interior – CleanCover |
FILTER SYSTEM
| Number of dishwasher-safe stainless steel grease filters (10-ply): 3 |
LIGHTING
| LED |
| Number x W: 2 x 3 W |
| Light intensity in Lx: 300 lx |
| Colour temperature in K: 3000 Kelvin |
BLOWER
| Fan power (m³/h): 570 |
| Dual-action blower |
| AC motor |
EXTRACTION
| Air throughput in Level 1 (m³/h) according to EN 61591: 150 |
| Air throughput in Level 2 (m³/h) according to EN 61591: 250 |
| Air throughput in Level 3 (m³/h) according to EN 61591: 350 |
| Air throughput with Booster setting 1 (m³/h): 500 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 41 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 47 |
| Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3: 55 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 26 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 34 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 40 |
| Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3: 62 |
| Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 47 |
RECIRCULATION
| Air throughput in Level 1 (m³/h) according to EN 61591: 100 |
| Air throughput in Level 2 (m³/h) according to EN 61591: 150 |
| Air throughput in Level 3 (m³/h) according to EN 61591: 250 |
| Air throughput with Booster setting 1 (m³/h) according to EN 61591: 350 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 48 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 55 |
| Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3: 61 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 34 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 41 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 47 |
| Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3: 68 |
| Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 53 |
SAFETY
| Safety shut-off |
TECHNICAL DATA
| Overall height for extraction mode and external mode rangehoods in mm: 1015 |
| Overall height for recirculation mode rangehoods in mm: 1145 |
| Net weight in kg: 26 |
| Length of supply lead in m: 1.5 |
| Standard plug fitted |
| Total rated load in kW: 0.126 |
| Voltage in V: 230 |
| Fuse rating in A: 10 |
| Frequency in Hz: 50 |
| Number of phases: 1 |
| Overall height for vented and external in in. (mm): 695 |
| Overall height for recirculation in in. (mm): 825 |
| Canopy width in in. (mm): 898 |
| Canopy height in in. (mm): 120 |
| Depth of hood canopy in in. (mm): 520 |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm: 650 |
INSTALLATION NOTES
| Extraction ducting connection at top |
| Extraction connection at top and rear |
| Diameter of extraction ducting connection in mm: 150 |
| Telescopic chimney |
ACCESSORIES SUPPLIED
| Non-return flap |

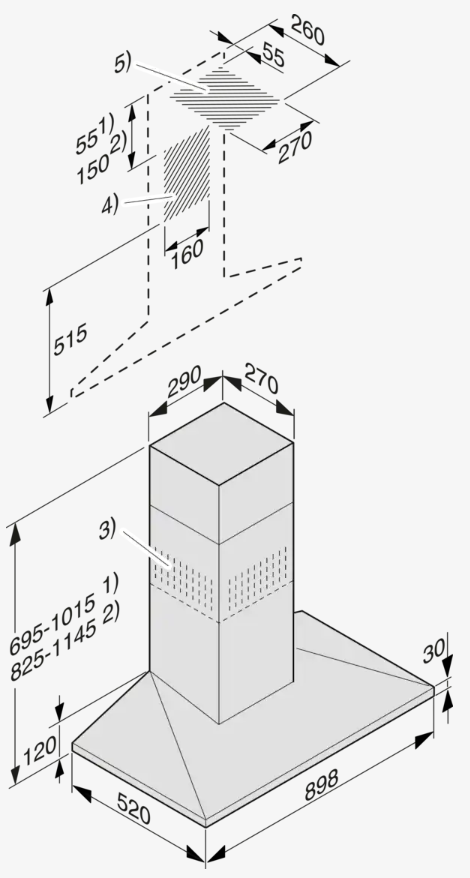

TECHNICAL DIAGRAM
 |
